AIM MOTORSPORT 10" TFT MXT Strada 1.3 Digital Display Dash - Race or Road Icons - CAN or OBDII
AIM 10" TFT MXT Strada 1.3 Digital Display Dash - Race or Road Icons - CAN or OBDII
PREORDER - Expected End of January / February
The MXT 1.3 Strada features a 10" wide colour dash display offering great visual impact and is configurable to show data coming from your vehicle's ECU.
Key Features :
10” TFT Display
10 Shift Light RGB LEDs
CAN Output
6 Alarm RGB LEDs
8 Analogue Inputs
Configure Data
The MXT 1.3 Strada has an integrated shift array, configurable multicolour alarms, drag and drop multi-page configuration, Wi-Fi and USB connectivity, GPS09 Module, analogue and digital inputs, digital outputs, motorsport connectors, 4GB of internal memory, 1000Hz per channel sampling and support for over 1000 ECU connections.
MXT 1.3 Strada samples data coming from your ECU, the GPS09 Module, 8 fully configurable analogue inputs, 6 digital inputs, predefined math channels and a second CAN. Performance and data acquired can also be incremented adding up to eight expansion modules.
Freely Configurable Pages
You can define up to 8 custom pages, choosing among a selection of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two pushbuttons.

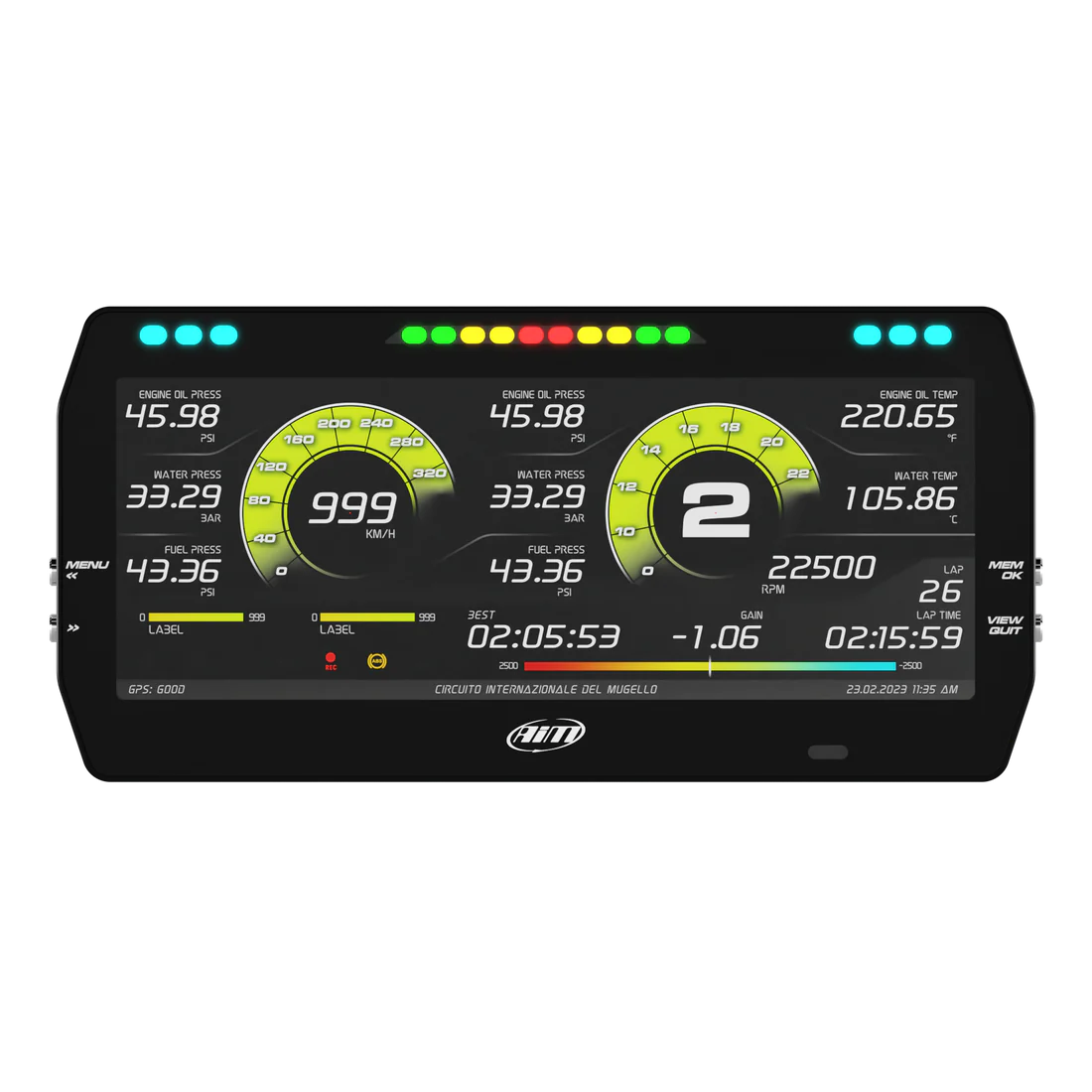

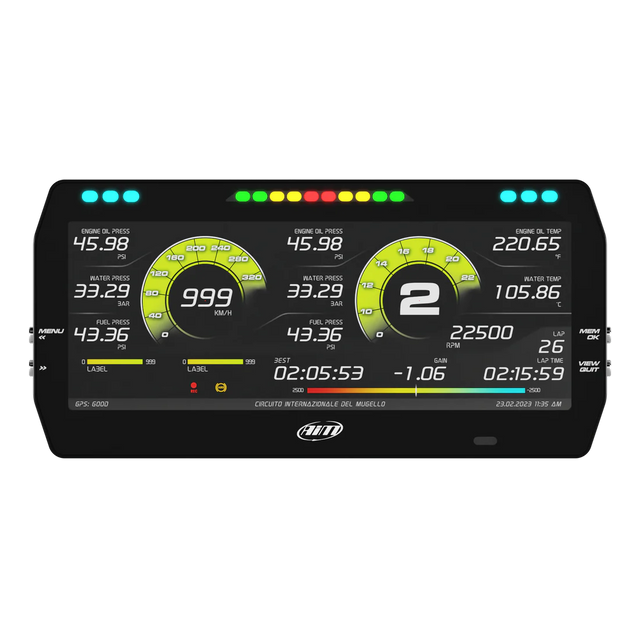

Display

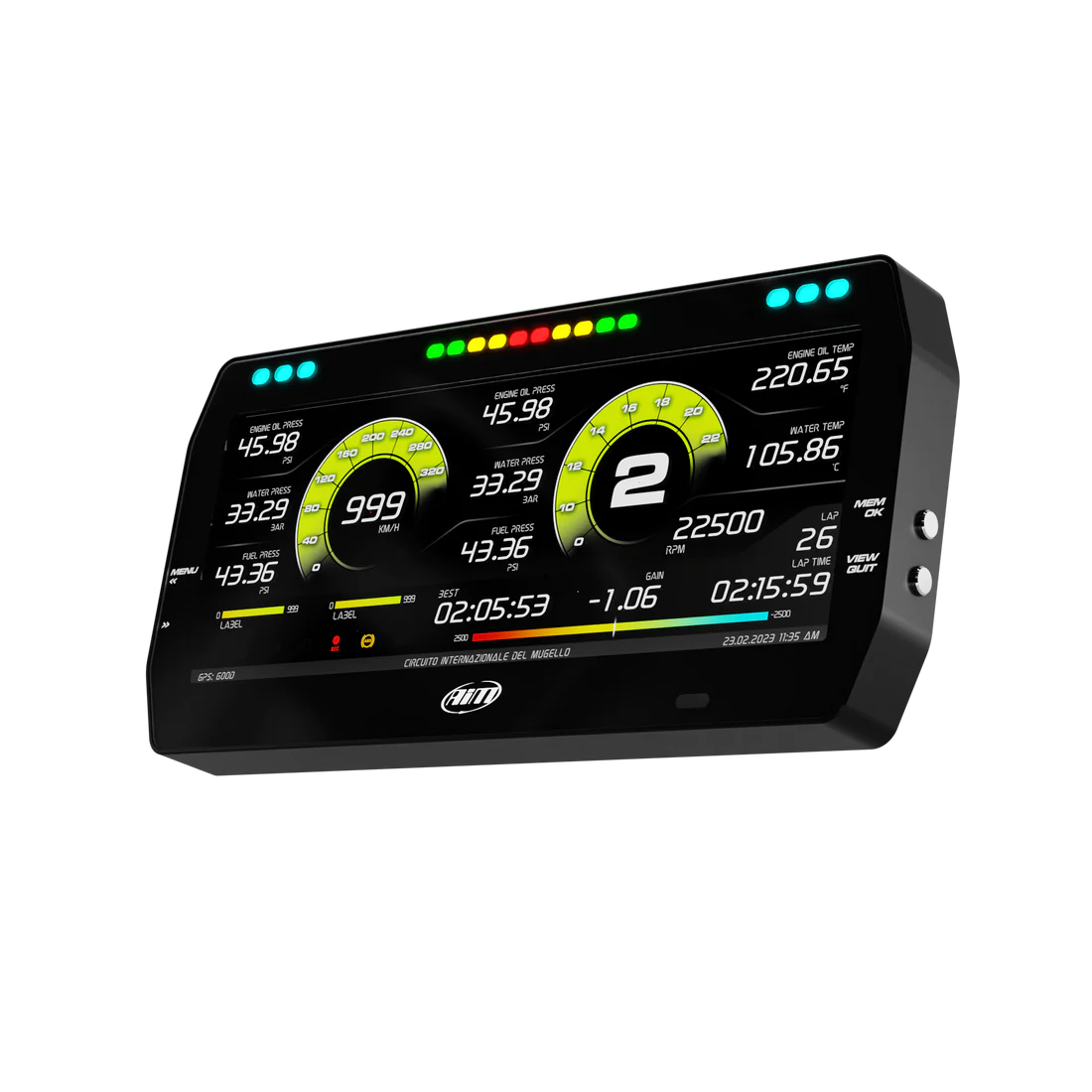

A high-contrast 10" TFT display identifies MXT 1.3 Strada at first glance. An ambient light sensor keeps the backlight at optimum brightness levels.

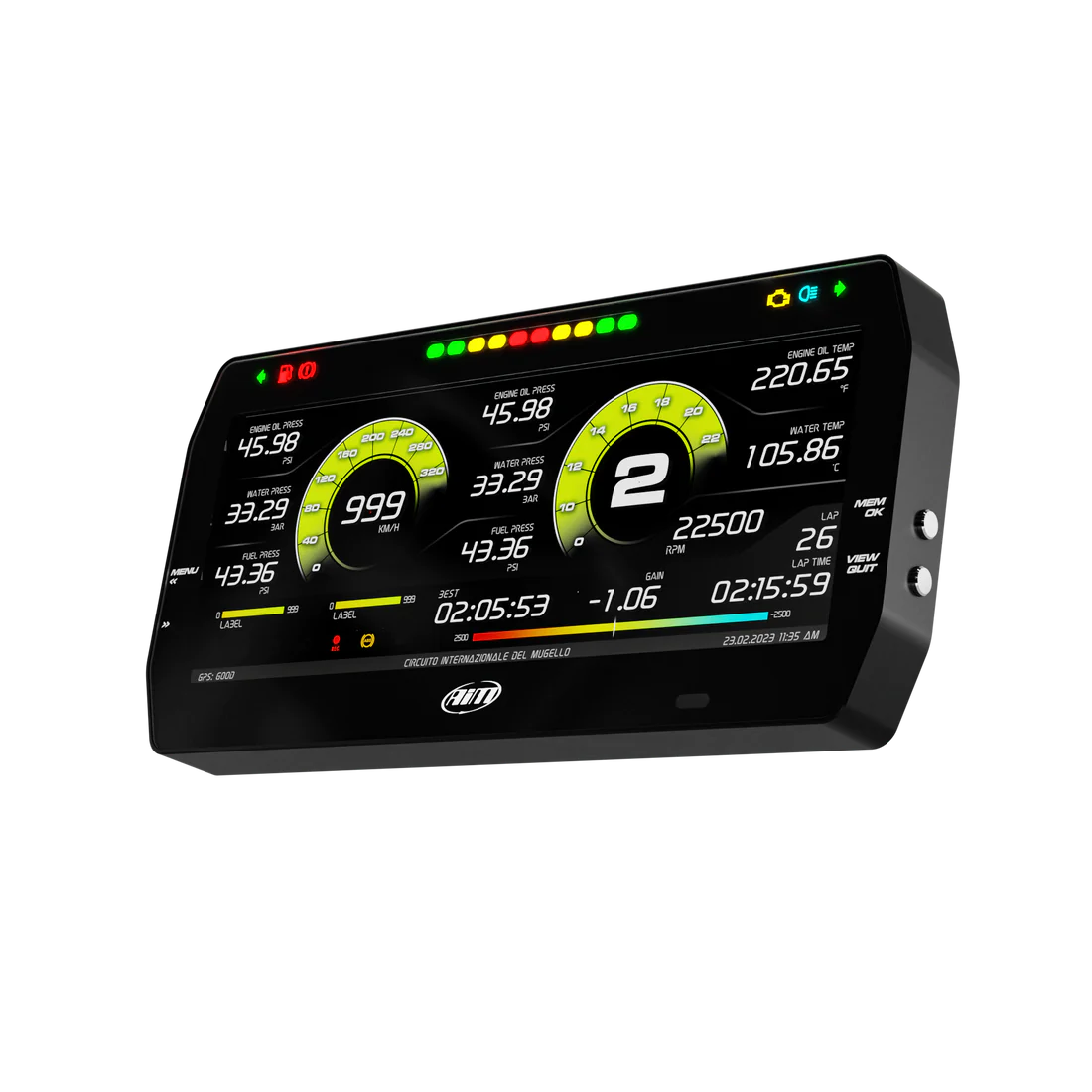

Flexible Alarms & Custom Street Icons
MXT 1.3 features five configurable RGB alarm LEDs: you choose the conditions, and you choose the colours. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Furthermore, you can select the street icons you need from the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer, or according to your needs. You will also be able to upload and set up your own customised icons.
Two Digital Outputs
MXT 1.3 Strada features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured to be turned on/off depending on the value of the analogue or digital inputs.
They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Camera Inputs & Mirror Camera
Two analogue camera inputs are available to swap your display into a mirror camera, through a pushbutton command or event management.
Integrated Shift Light Array
Choose from a host of advanced multicoloured RGB shift light patterns that can be customised as you like, and for each unique gear when required.
AiM MXT 1.3 Strada 10" TFT Digital Display
- Display: 10" TFT
- Resolution: 1280 x 480 pixels
- Contrast: 1,100:1
- Brightness: 800cd/m
- Ambient Light Sensor: Yes
- Alarm Display Icons: Yes, freely configurable
- Alarm LEDs: 6 configurable RGB LEDs
- Shift Lights: 10 configurable RGB LEDs
- CAN Connections: 3
- ECU Connections: CAN, RS232 or K-Line
- ECU Compatibility: +1000 industry-leading ECUs
- Expansion CAN Connection: GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
- Analogue Inputs: 8 fully configurable, max 500 Hz each
- Digital Inputs: 4-speed input, lap signal, coil RPM input
- Digital Outputs: 2 (1 A max)
- Second CAN: Yes
- Internal memory: 4GB
- Body: Anodised Aluminium
- Pushbuttons: Metallic

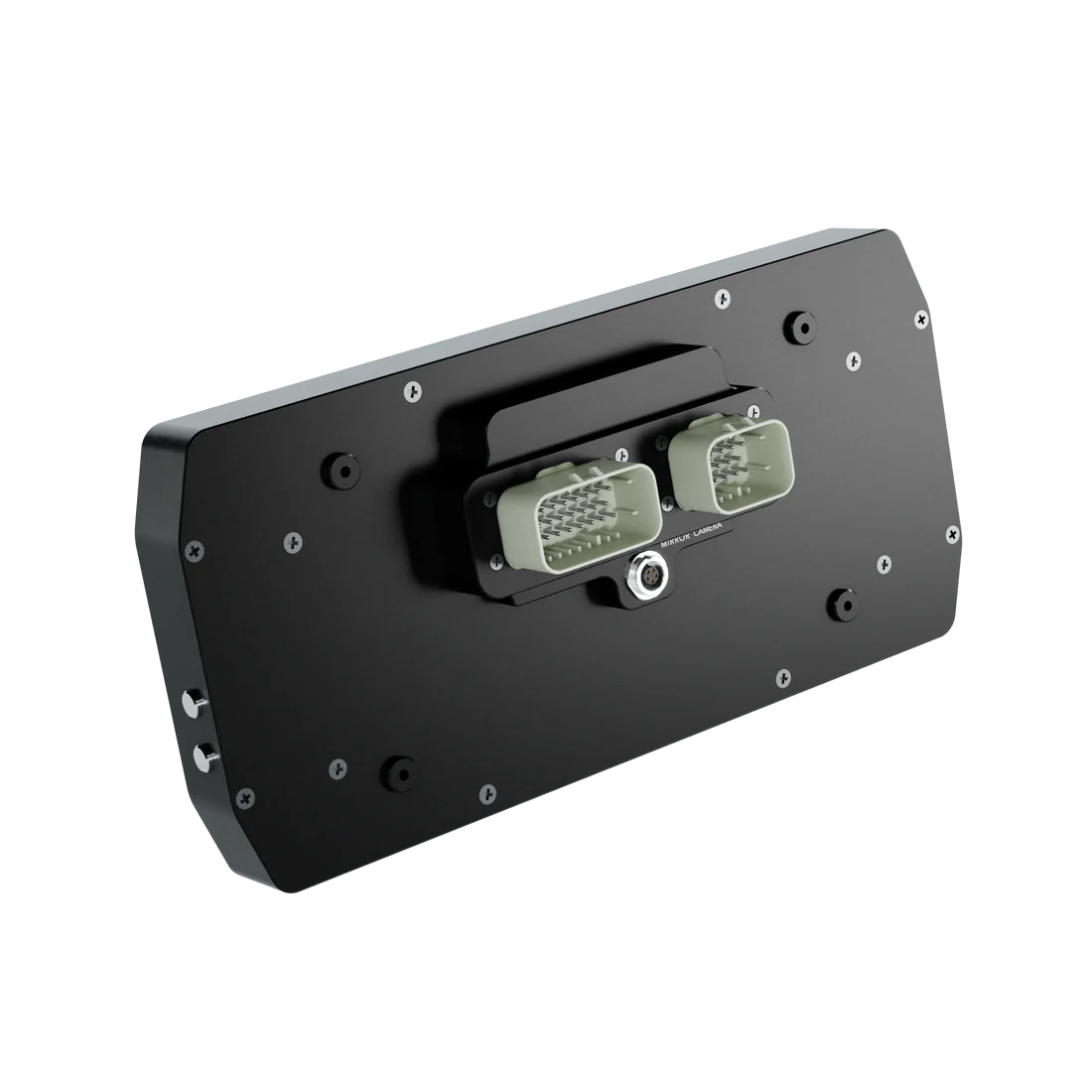

- Connectors: 2 Autosport connectors + 1 Binder connector
- Power Consumption: 450 mA

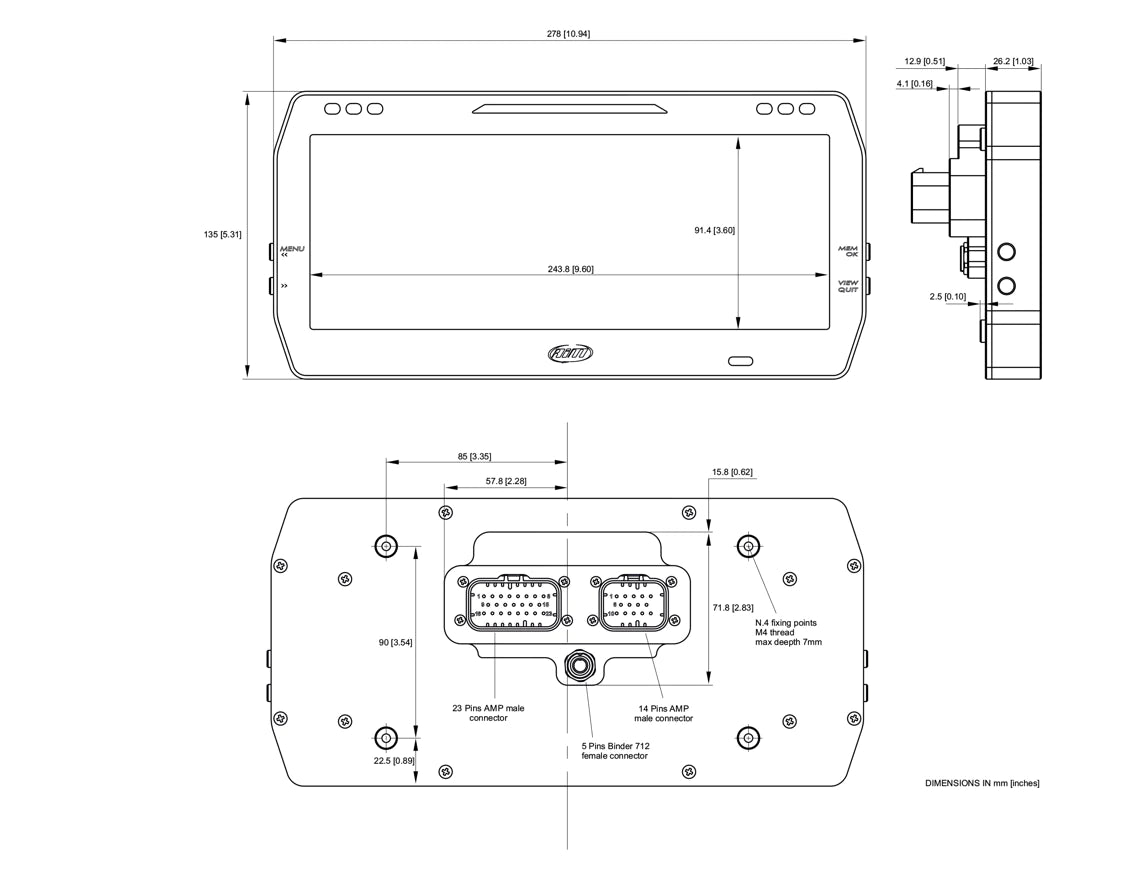

- Dimensions: 278 X 135 X 43.2mm
- Weight: 1,200g
- Waterproof: IP65

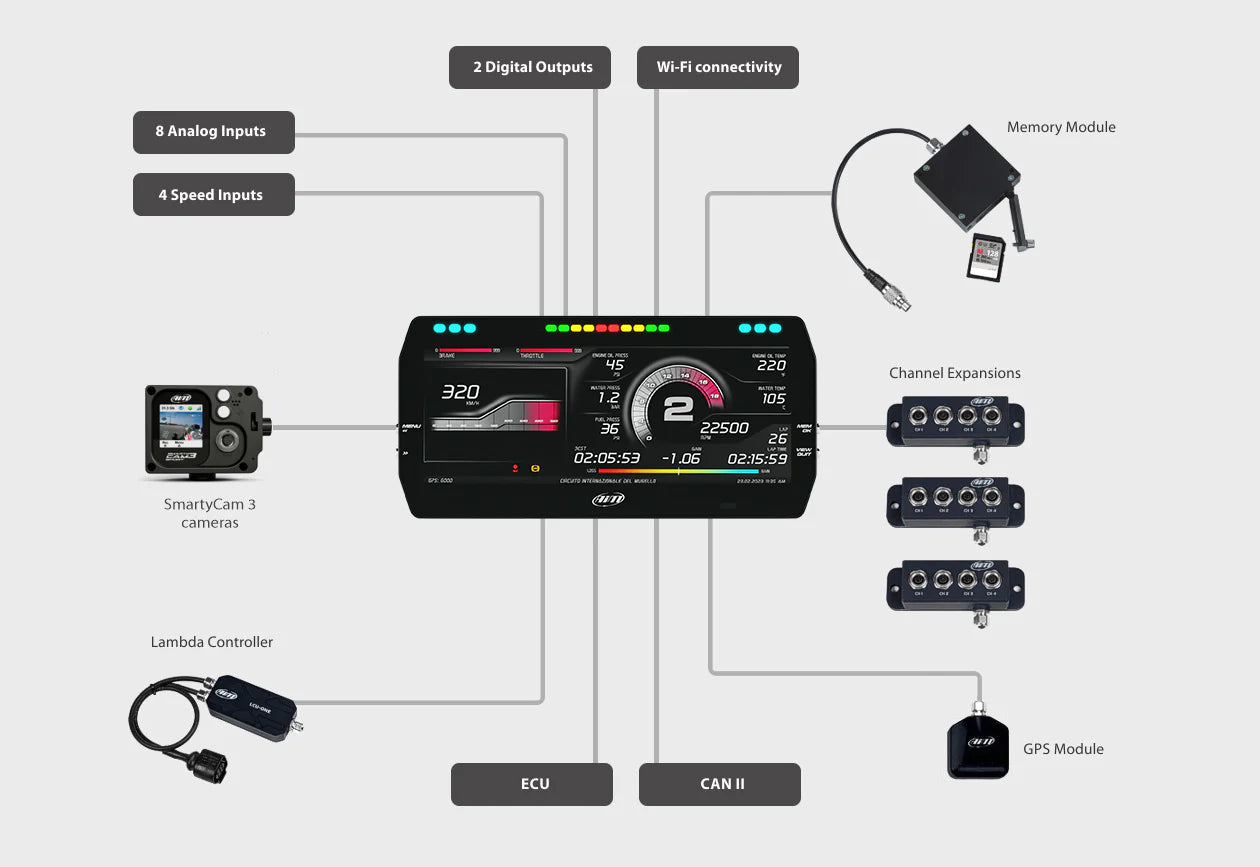

Expand Your System OPTIONAL EXTRAS
Using the built-in CAN bus, you can add expansion modules to the MXT 1.3 Strada to increment the performance and the data acquired:
GPS09 Module
Thanks to GPS09 Module (included in the kit) and its Race Studio 3 software, you can immediately get lap times and all data needed for engine tuning as well as for improving driving technique.
Channel Expansion
It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.
TC Hub
It adds 4 K thermocouples.
LCU-One CAN
Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.
Memory Module
The Memory Module is a small SD Card holder that can be connected via CAN bus to your AiM Strada logger in order to record the data during your tests.
