Mini 1.6 Cooper S R53 JCW W11 Supercharged 2001-2006 PEC Forged H-Beam Steel Con Rods Set - ARP 2000 Bolts
| Engine Type | R53 W11B16 G0336 |
| Length C/C | 131.50mm |
| Small End Diameter | 21.00mm |
| Small End Width | 18.45mm |
| Big End Diameter | 49.01mm |
| Big End Width | 23.25mm |

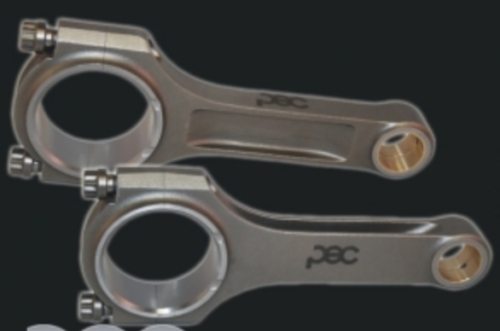

You are buying a set of 4 PEC H-beam Conrods with ARP 2000 Bolts.
PEC rods are designed to withstand roughly 225hp per cylinder (typically 900hp on most 4cyl engines) and on the ARP 2000 series 3/8 bolts normally provided & have an 8,500 RPM safe operating limit (engine specific).
In some cases, we recommend using the ARP custom age bolts available from us. This increases the hp threshold to 250hp per cylinder and raises the RPM limit to 9,000 however as every engine is different, these numbers are not guaranteed for every configuration.
Prolonged high RPM's for drifting, or sudden bursts of torque for drag racing (as two examples) will warrant the use of the custom age bolts to help retain the clamping force between the big end cap and the connecting rod.
If in doubt, please contact us for advice.
H-Beam and I-Beam section connecting rods are forged from AISI 4340 (En24) steel. Heat treated to HRC 35-38 and then shot peened for a higher fatigue strength. Small ends are bushed for a fully floating pin and big ends are fitted with high quality ARP fasteners with different specification bolts available depending on the level of performance required.
Manufactured from forgings originally produced in Sweden, PEC connecting rods have offered engine builders and tuners a cost efficient and yet high performing solution to a wide variety engine building problems.
