Aim MXS Strada OBD2 OBDII ROAD RACE Car Dash Display

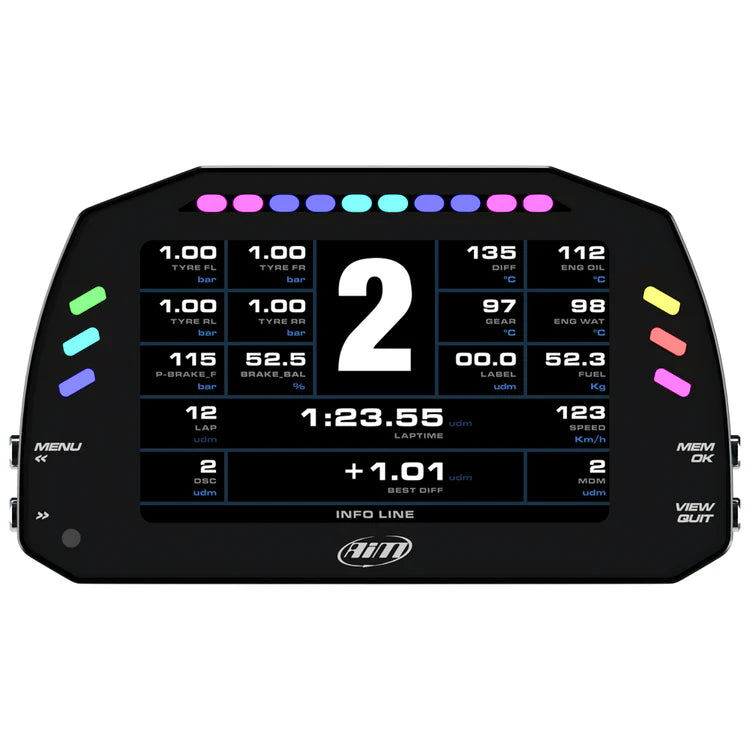

The Aim MXS Strada Car Dash Display is the evolution of MXL Strada, one of the most widely-spread dashes on tracks and streets all over the world. The MXS Strada has a 5" colour display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit (ECU) , analog/digital inputs, pre-defined math channels and optionally, the GPS Module. Its data sampling capability can also be incremented adding up to eight expansion modules.

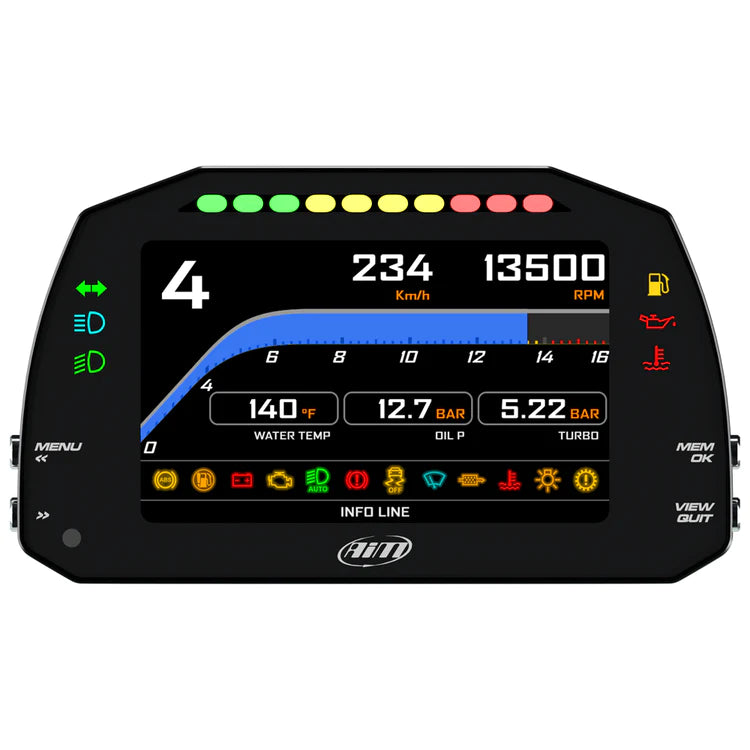

Aim MXS Strada Car Dash Display is a high colour, high contrast 5" TFT dash display ideal Street and race car/bike installations. The Dashes are available with (Road) and without (Race) icons and are fully configurable.
You can configure alarm LEDs choosing colour, blinking frequency and defining the logic for turning them on or off.
The Aim MXS Strada Car Racing Dash/Display is for use on tracks and streets. It acquires data from the ECU of your vehicle making it relatively easy to fit.

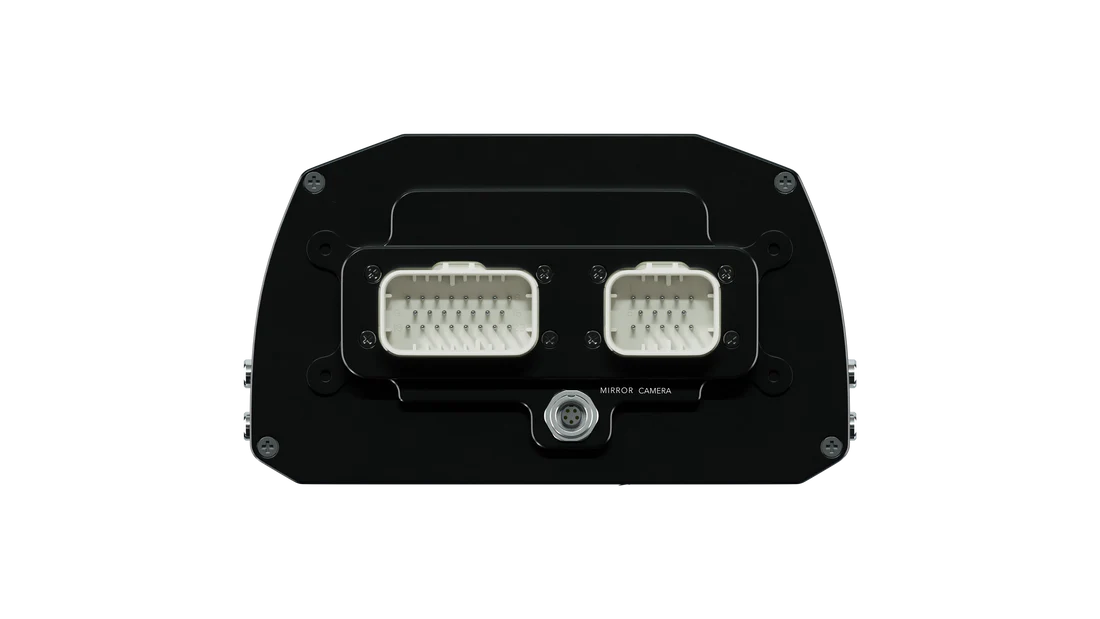

An additional socket on dash for a Reversing Camera.
What you are buying:
MXS Strada with OBD II Connection
14 pin standard wiring
23 pin connector + contacts
Race Studio 3 Software
Added Extras :
Analog loom 23 pin +£156
GPS Module in multiple lengths +£264
GPS Roof Version 2m & 4m +£312
Also Available in store:
LCU Lambda & EGT controller
4 Way EGT TC Hub
Display: 5" TFT
Resolution: 800x480 pixels
Brightness: 700cd/m2 - 1,100 Lumen
Ambient light sensor: Yes
Alarm LEDs: 6 RGB freely configurable
Shift light: 10 integrated freely configurable RGB LEDs
CAN connections: 2
ECU connections: CAN, RS232 or K-Line
ECU compatibility: + 1,000 industry leading ECUs
Expansion CAN connection: GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
Analog inputs: 4 fully configurable, max 1,000 Hz each
Digital inputs: 1 speed input, lap signal, coil RPM input
Digital outputs: 1 (1 Amp max)
Second CAN: Yes
Body: Anodized Aluminum
Connectors: 2 AMP connectors

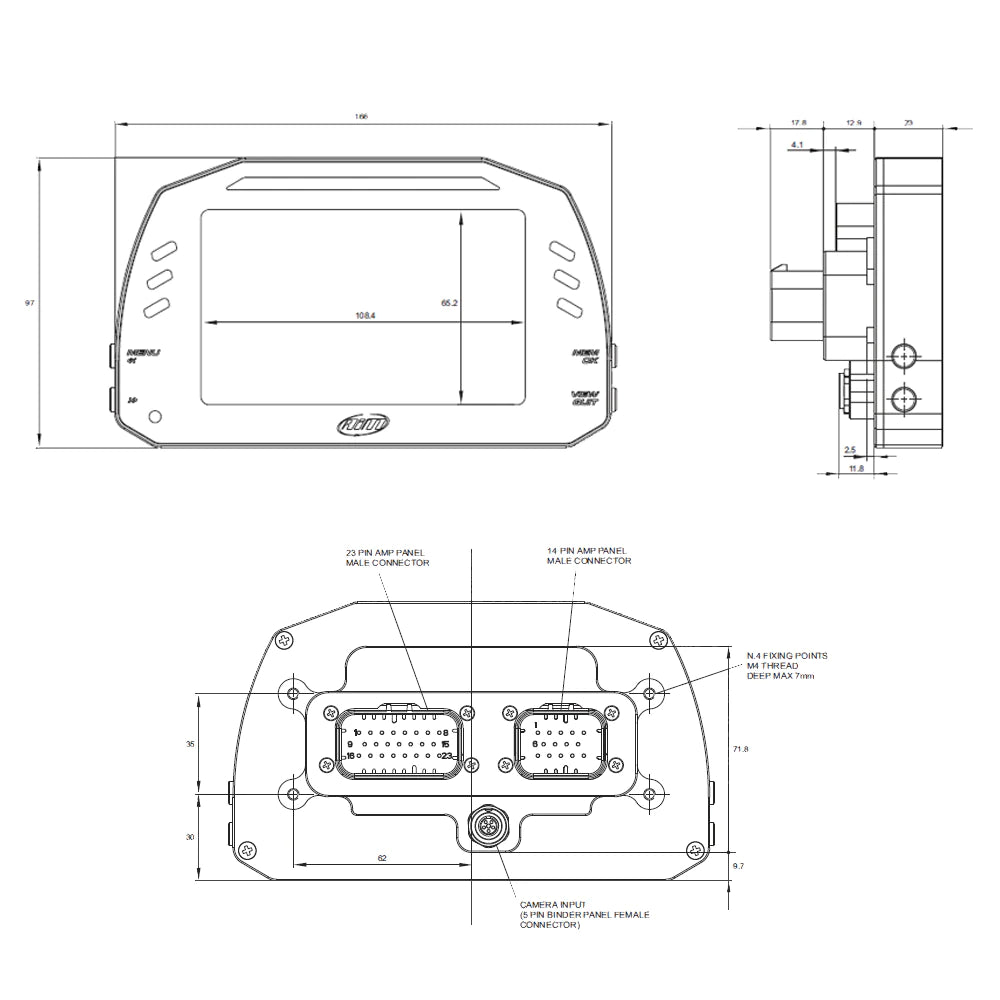

Dimensions: 169.4x97x23 mm
Weight: 480 g
Power consumption: 400 mA
Features that can be added to Aim Dash / Display:

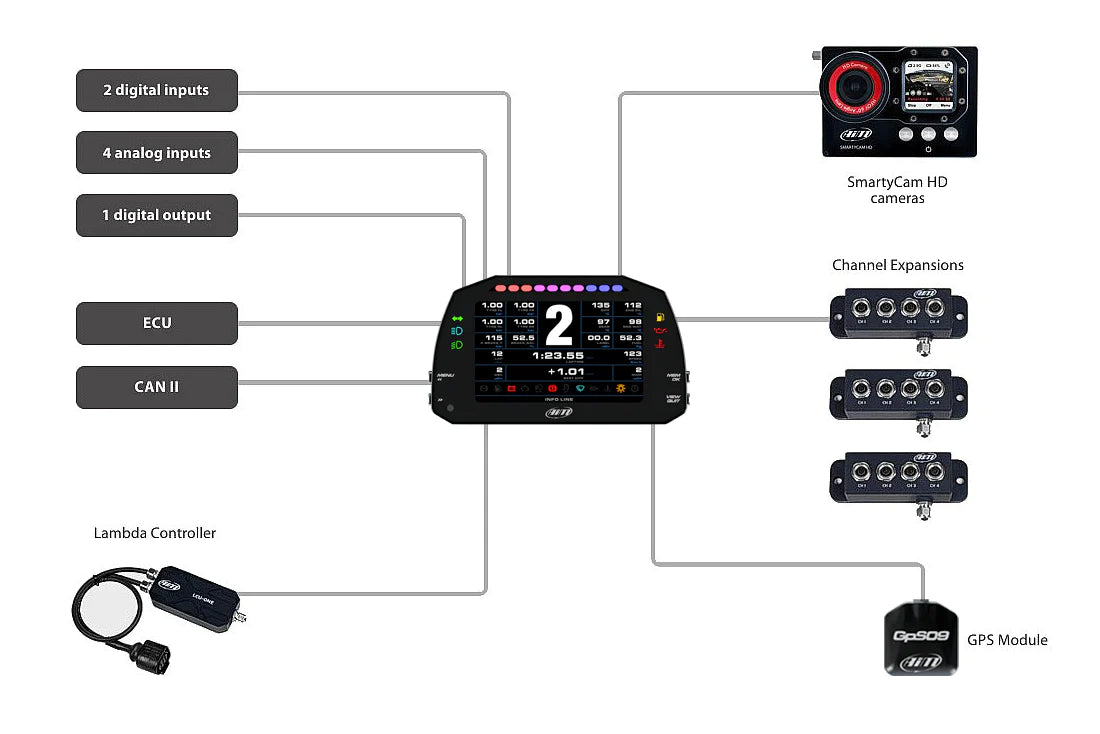

Add expansion modules via the built in CAN bus eg. GPS08, Channel Expansions, Lambda Controllers. These are only some of the items that can be added to our MXS Strada for incrementing the performance and the data acquired.
