Cosworth YB Air Temperature Sensor Weber Marelli  ATS04

Cosworth YB Air Temperature Sensor Weber Marelli ATS04

£15.50

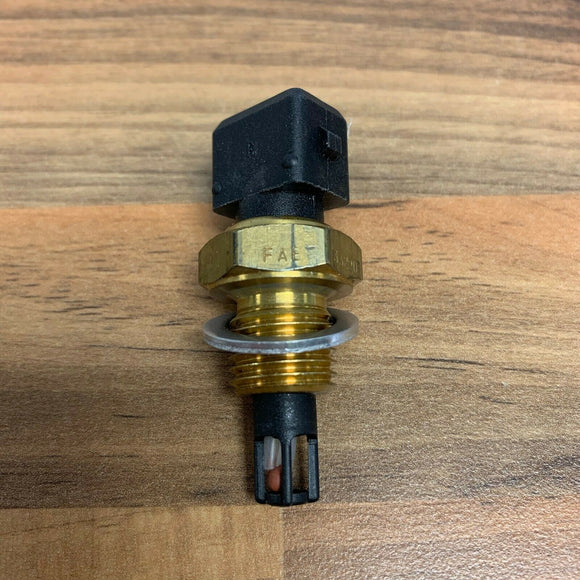

Cosworth YB Air Temperature Sensor ATS04

Will fit :
Cosworth YB
Fiat
Lancia
Maserati
Alfa Romeo

Other Part Numbers:
Ford: 1639284, V86HF12A697AA,
Alfa Romeo: 60806471, 500309797
Fiat: 7547976,
AT1009
Lancia 500309797 / 60806471 / 7547976
MASERATI 470079700

Main Features:
  • Mini-Timer connector
  • Fast response time
  • High signal level
  • Low cost
  • Resistance @ 25 ºC = 3 kΩ
  • Accuracy from nominal values = 5% (W/ºC) @ -40 > +125 ºC
  • Maximum operating voltage = 5 V (series)
  • Thread = M14 x 1.5
  • Seal = 19mm Hex
  • Connector = Mini Timer 2 way (See our other auctions)
  • Tightening torque = 24 Nm max
Temperature & Resistance:
  • ºC kΩ
  • -40 100.95
  • -30 53.10
  • -20 29.12
  • -10 16.60
  • 0 9.75
  • 10 5.97
  • 20 3.75
  • 25 3.00
  • 30 2.42
  • 40 1.60
  • 50 1.08
  • 60 0.75
  • 70 0.53
  • 80 0.38
  • 90 0.28
  • 100 0.20
  • 110 0.15
  • 125 0.10
