Innovate LC-2 Lambda Sensor Controller - DTA LINK ECU SYVECS ECUMASTER HALTECH

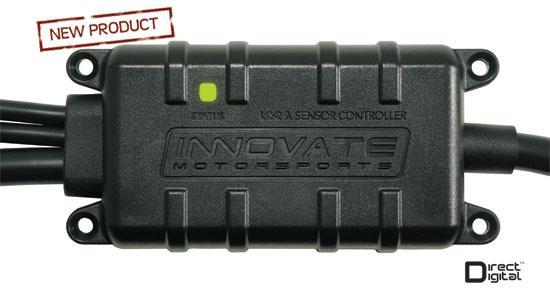

The evolution of the worlds most popular stand alone digital O_ sensor controller, the Innovate Motorsports LC-2 builds upon the legacy of the LC-1 by adding simplicity and leading edge technology. The LC-2 utilises the only 100% digital wideband air/fuel ratio technology on the market! The LC-2s patented award-winning DirectDigital signal processing technology provides data on exactly how rich or lean an engine is running at any load. The LC-2s self-calibrating circuitry also compensates for changes in temperature, altitude, and sensor condition. The LC-2 includes a digital input/output, 2 full-programmable analogue outputs, and is ideal for applications such as dynamometers, data acquisition systems, standalone ECUs, and gauges. The LC-2 can also be daisy-chained for cost-effective individual cylinder monitoring, and is fully compatible with our Modular Tuning System (MTS).
- Patented DirectDigital Wideband Technology
- Wideband O_ Compatible with ALL fuel types
- Ability to calibrate O_ sensor for maximum accuracy
- Integrated dual-colour status LED (Green/Red)
- *Two configurable linear 0-5v analogue outputs
- Optional sensor cable lengths available: 3ft, 8ft (Included), and 18ft
- Positive lock connectors for all connections
- Innovate MTS serial in/out
- Serial connection to your PC
- Real-time display data on screen and/or with powerful LogWorks software*Two fully programmable linear analogue outputs to connect to analogue gauges, dyno computers, ECUs, piggyback controllers, and other devices with analogue inputs.
- Analogue Output #1 (Yellow) is configured as 0 volt = 7.35 AFR and 5 volts = 22.39 AFR
- Analogue Output #2 (Brown) 1.1 volt = 14 AFR and .1 volt = 15 AFR
- With the provided LM Programmer software these analogue outputs may also be configured by the user.
